Aligner Scissor On Scissor
Description

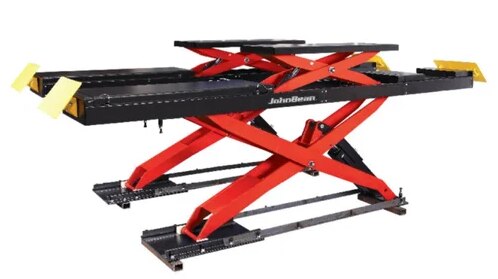

John Bean Aligner Scissor on Scissor Lift
John Bean Aligner Scissor on Scissor is a professional workshop lifting and wheel alignment platform designed for automotive service centers, tyre shops, wheel alignment workshops, and vehicle maintenance facilities. Model EELRIN534AC3 combines a movable scissor-type design with an electric AC power source and a 5-ton stated load capacity.
Its compact, column-free construction helps optimize workshop floor space while providing an unobstructed working area for alignment and under-vehicle operations. The platform is designed to support wheel alignment procedures, wheel-off adjustments, wheel rotation, balancing-related work, and other suitable workshop applications.
š A practical solution for workshops looking to improve workflow, operator comfort, and bay utilization.
Key Features
āļø Scissor-on-Scissor Design
The primary and secondary platforms are integrated into a compact lifting arrangement, helping provide a more organized working area.
šļø High Load Capacity
The supplied specifications state a 5,000 kg (5-ton) load capacity, with a 3.5-ton capacity also specified for the platform configuration.
š Extended Lifting Range
The primary platform has a specified maximum height of approximately 1,860 mm, while the secondary platform provides a lifting height of approximately 456 mm.
š§ No Additional Roller Jack Requirement
The secondary platform design is intended to reduce the need for a separate roller jack during suitable alignment operations.
š¢ Space-Saving Construction
The column-free design can help workshops make more efficient use of available floor space.
š Mechanical Safety Lock
The system features a dual-engagement twin interlocking mechanical safety lock with pneumatic release from approximately 430 mm, according to the supplied specifications.
š Movable Design
The lift is specified as movable and towable, providing flexibility for suitable workshop layouts.
Product Specifications
Specification Details
Brand John Bean
Model EELRIN534AC3
Product Type Aligner Scissor on Scissor
Load Capacity 5000 kg / 5 Ton
Platform Capacity 3.5 Ton
Mobility Movable / Towable
Power Source Electric AC
Usage Automotive Workshops
Platform Size 2550 Ć 1530 mm
Primary Minimum Height 330 mm
Primary Maximum Height 1860 mm
Primary Lifting Height 1862 mm
Secondary Lifting Height 456 mm
Runway Length 4000 mm
Platform Width 620 mm
Overall Width 2160 mm
Rear Slip Plate Length 1517 mm
Maximum Wheelbase 3280 mm
Maximum Flush-Mount Length 4300 mm
Front Turntable Length 476 mm
Plate Length 1400 mm
Plate Width / Lifting Width 550 mm
Installation Recommendation Flush Mount
Delivery Time 3ā4 Weeks
Designed for Wheel Alignment Workshops
The John Bean Aligner Scissor on Scissor is designed around the requirements of professional automotive service environments where wheel alignment, tyre servicing, and vehicle inspection are performed regularly.
Its scissor configuration provides lifting access without the use of traditional vertical columns. This can make the bay more open and convenient for technicians working around the vehicle.
The platform dimensions and specified maximum wheelbase of 3280 mm make it suitable for compatible vehicles within the lift's operating limits. Vehicle compatibility should always be checked against the manufacturer's specifications before installation or operation.
Benefits for Tyre Shops and Service Centers
š Single-Bay Workflow
Suitable workshop operations can be organized around one lifting bay, helping improve space utilization.
š§ Easier Alignment Access
The elevated platform can provide technicians with convenient access during suitable alignment adjustment procedures.
š° Reduced Accessory Requirement
The supplied design information states that an additional roller jack may not be required for suitable applications.
š§āš§ Improved Operator Comfort
The lifting arrangement can allow technicians to perform certain adjustment tasks while standing, potentially reducing repetitive bending.
š Better Workshop Productivity
A well-organized alignment bay can help technicians manage workflow more efficiently and serve customers effectively.
š¢ Space Optimization
The compact column-free construction can help maintain a more open workshop environment.
Wheel Alignment and Tyre Service Applications
John Bean Aligner Scissor on Scissor can be suitable for:
Wheel alignment workshops
Tyre shops
Automotive service centers
Car workshops
Vehicle inspection facilities
Wheel balancing operations
Tyre rotation services
Automotive maintenance businesses
Professional vehicle repair workshops
The actual application depends on vehicle specifications, equipment compatibility, installation requirements, and workshop operating procedures.
All-Wheel-Off Adjustment Capability
The supplied product information highlights the ability to perform all-wheel-off adjustments. This can be useful for professional wheel alignment and tyre service operations where technicians require access to all wheels.
The secondary platform is designed to provide an unobstructed working area and reduce the requirement for an additional roller jack in suitable operations. This can help simplify workshop equipment requirements and maintain a cleaner service bay.
Safety and Installation
Safety is an essential part of operating any automotive lifting equipment. The supplied specifications include a dual-engagement twin interlocking mechanical safety lock with pneumatic release from approximately 430 mm.
The manufacturer or qualified installation professional should determine the appropriate installation method, foundation requirements, electrical connection, safety procedures, and vehicle compatibility.
The product has a recommended flush-mount installation configuration. Installation should be completed according to applicable equipment instructions and site requirements.
Why Choose John Bean Aligner Scissor on Scissor?
The John Bean Aligner Scissor on Scissor combines lifting functionality with a workshop-oriented alignment platform. Its column-free structure, movable design, specified 5-ton load capacity, and scissor-on-scissor configuration make it suitable for businesses looking for an organized wheel alignment and tyre service setup.
For workshops handling regular alignment and tyre-related operations, selecting equipment with suitable platform dimensions, wheelbase compatibility, lifting capacity, safety systems, and installation configuration is important.
Frequently Asked Questions
What is the John Bean Aligner Scissor on Scissor?
It is an automotive scissor lifting system designed for suitable wheel alignment, tyre service, vehicle maintenance, and workshop applications.
What is the model number?
The supplied model number is EELRIN534AC3.
What is the load capacity?
The specifications state a 5,000 kg or 5-ton load capacity, with a 3.5-ton platform capacity also specified.
What is the maximum primary lifting height?
The supplied specification states a maximum primary height of approximately 1,860 mm.
What is the secondary platform lifting height?
The secondary platform has a specified lifting height of approximately 456 mm.
What is the maximum wheelbase?
The specified maximum wheelbase is 3,280 mm.
Does it require a roller jack?
The secondary platform design is intended to eliminate the need for an additional roller jack for suitable operations.
What type of power does it use?
The product is specified to operate using an electric AC power source.
Is the lift movable?
Yes. The supplied specifications describe it as movable and towable.
What installation method is recommended?
The supplied product information recommends flush-mount installation.
What is the expected delivery time?
The supplied delivery information states approximately 3ā4 weeks.
John Bean Aligner Scissor on Scissor Model EELRIN534AC3 is a professional automotive workshop lift designed for suitable wheel alignment, tyre service, vehicle maintenance, wheel-off adjustment, wheel rotation, and balancing-related applications. The system has a stated 5-ton load capacity and 3.5-ton platform capacity, with a primary lifting height of approximately 1,860 mm and secondary lifting height of 456 mm. Its column-free scissor design helps create an open working area and can support efficient workshop space utilization. With movable construction, electric AC operation, safety locking, and flush-mount installation, it is suitable for compatible tyre shops, wheel alignment centers, automotive workshops, and vehicle service facilities.
