T1000 Tyre Changers

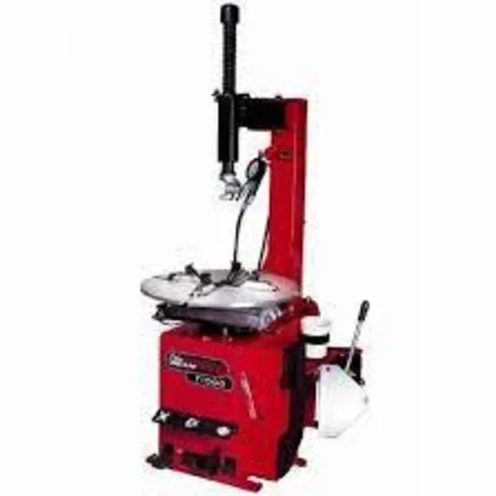

T1000 John Bean Tyre Changer

The T1000 John Bean Tyre Changer is a semi-automatic tyre servicing machine designed for professional automobile workshops, tyre shops, service garages, and automotive maintenance centers. It is engineered for efficient tyre mounting and demounting operations and provides a practical combination of strong bead breaking performance, reliable rim clamping, and convenient workshop operation.

The machine features a self-centering clamping system that helps hold the wheel securely during tyre servicing. Its double-acting pneumatic bead breaker delivers up to 12000 N of bead breaking force, making it suitable for handling a wide range of tyres within its specified operating capacity.

With an external clamping range of 10–20 inches and an internal clamping range of 12–22 inches, the T1000 provides flexibility for different wheel and tyre configurations. Its side-swing mounting arm also helps reduce the installation space required in the workshop.

Product Specifications

Parameter Specification

Product Name T1000 John Bean Tyre Changer

Brand John Bean

Operation Type Semi Automatic

Clamping Type External Clamp

Rim Diameter 10–22 Inch

Inner Clamping Range 12–22 Inch

Outer Clamping Range 10–20 Inch

Bead Breaker Force 12000 N

Maximum Tyre Width 13 Inch

Maximum Wheel Diameter 39 Inch

Power Supply 230 V, 1 Phase, 50 Hz

Phase Single Phase

Frequency 50 Hz

Voltage 230 V

Compressed Air Supply 8–10 Bar

Dimension 1040 × 1040 × 1690 mm

Machine Weight 187 kg

Key Features

🎯 Self-Centering Rim Clamping

The self-centering jaws provide a secure grip on the wheel rim, helping maintain stable positioning during tyre mounting and demounting.

💪 Powerful Bead Breaker

The double-acting pneumatic bead breaker generates up to 12000 N of force to assist with efficient bead separation.

🔧 Semi-Automatic Operation

The semi-automatic configuration offers a practical solution for workshops requiring reliable tyre servicing with controlled manual operation.

📏 Flexible Rim Compatibility

The T1000 supports an inner clamping range of 12–22 inches and an outer clamping range of 10–20 inches.

🚗 Tyre Width Capacity

The machine is designed to accommodate tyres with a maximum specified width of 13 inches.

↔️ Space-Efficient Design

The side-swing mounting arm allows the machine to be installed with comparatively less clearance around the operating area.

💨 Pneumatic Service System

An oiler and water separator are included to support the compressed-air system during regular operation.

🛞 Tyre Inflation Facility

The machine includes a tyre inflator arrangement for added convenience during tyre servicing.

T1000 John Bean Tyre Changer Working

The wheel is positioned on the machine and secured using the self-centering jaws. The pneumatic bead breaker is then used to separate the tyre bead from the rim. After the bead is released, the mounting arm and mounting head are positioned for tyre removal or installation.

The operator can then rotate the wheel and perform the mounting or demounting process in a controlled manner. Once the new tyre is installed, the integrated tyre inflation facility can be used as part of the servicing process.

Applications

The T1000 John Bean Tyre Changer is suitable for:

Automobile workshops

Tyre shops

Car service garages

Tyre service centers

Automotive dealerships

Vehicle maintenance centers

Multi-brand service workshops

Tyre dealerships

Professional automotive repair facilities

Passenger vehicle tyre servicing applications

Why Choose the T1000 John Bean Tyre Changer?

The T1000 is designed for workshops looking for a dependable semi-automatic tyre changing solution with practical wheel clamping capacity and strong pneumatic bead breaking performance. Its self-centering jaws help stabilize the wheel, while the double-acting bead breaker assists technicians during tyre removal.

The 12–22 inch inner clamping range, 10–20 inch external clamping range, 13-inch maximum tyre width, and compact side-swing mounting arrangement make the machine suitable for a variety of professional tyre service environments.

Major Advantages

Semi-automatic tyre servicing operation

John Bean branded tyre changing machine

Self-centering wheel clamping system

12000 N bead breaker force

Double-acting pneumatic bead breaker

Inner clamping range of 12–22 inches

Outer clamping range of 10–20 inches

Maximum tyre width of 13 inches

Oiler and water separator included

Tyre inflator arrangement

Side-swing mounting arm

Suitable for professional automotive workshops

Single-phase 230 V power supply

Frequently Searched Product Terms

T1000 Tyre Changer, T1000 John Bean Tyre Changer, John Bean T1000 Tyre Changer, John Bean Tyre Changer, T1000 Tyre Changing Machine, John Bean Tyre Changing Machine, semi automatic tyre changer, semi automatic tyre changing machine, pneumatic tyre changer, automobile tyre changer, car tyre changer, tyre mounting machine, tyre demounting machine, tyre service machine, professional tyre changer, workshop tyre changer, automotive tyre changing machine, John Bean tyre machine.

Product Summary

The T1000 John Bean Tyre Changer is a semi-automatic tyre servicing machine featuring self-centering jaws, a double-acting pneumatic bead breaker, external rim clamping, and a side-swing mounting arm. It supports 12–22 inch internal clamping and 10–20 inch external clamping, with a maximum tyre width of 13 inches. Operating on a 230 V single-phase power supply and requiring 8–10 bar compressed air, the T1000 is a practical solution for tyre shops, automobile workshops, service garages, and professional vehicle maintenance centers.
