T2500 Tyre Changer

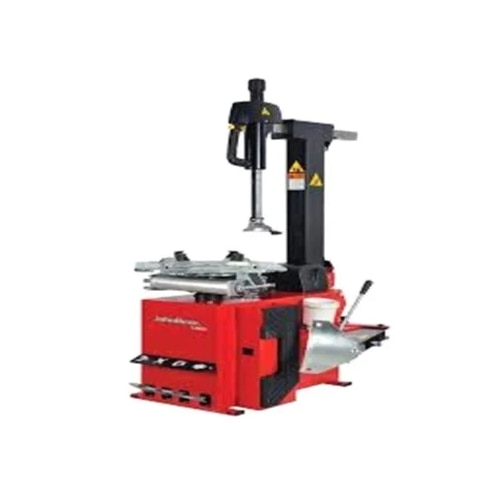

John Bean T2500 Tyre Changer

John Bean T2500 Tyre Changer is a professional tyre service machine designed for automotive workshops, tyre shops, service centers, and wheel service applications. Model T2500 combines pneumatic operation with an adjustable mounting head and double-acting bead breaker system to support efficient tyre mounting and demounting.

The machine is suitable for handling compatible RFT tyres and wheels up to the specified size range. Its tilt-back post design and pneumatic pedal controls help operators manage tyre-changing procedures with greater convenience and consistency.

🚗 A practical tyre changing solution for workshops looking for reliable equipment for regular wheel and tyre service operations.

Key Features

🔧 RFT Tyre Compatibility

The T2500 is designed to handle compatible Run-Flat Tyres (RFT), making it suitable for workshops servicing a range of modern vehicle wheels.

↩️ Tilt-Back Post Design

The tilt-back post configuration provides convenient access during tyre mounting and demounting operations.

⚙️ Pneumatic Pedal Control

The tilted post and operating functions are controlled through a pneumatic pedal arrangement for practical workshop operation.

💨 Double-Acting Bead Breaker

A double-acting pneumatic bead breaker cylinder provides controlled force for separating the tyre bead from the wheel rim.

📐 Adjustable Mounting Head

The mounting head can be adjusted vertically and laterally, allowing operators to position it appropriately for compatible wheel and rim applications.

🛞 Wide Wheel Handling Range

The supplied specifications state an outer clamping range of 10–20 inches and an inside clamping range of 12–22 inches.

Product Specifications

Specification Details

Brand John Bean

Model T2500

Product Type Tyre Changer

Outer Clamping Range 10–20 Inch

Inside Clamping Range 12–22 Inch

Maximum Tyre Width 13 Inch / 330 mm

Maximum Tyre Diameter 1000 mm

Compressed Air Supply 8–12 Bar

Maximum Listed Air Supply 10 Bar

Chuck Speed 6.5

Bead Breaker Force 10 kN

Operation Pneumatic

Post Type Tilt-Back

Bead Breaker Double-Acting Pneumatic

Note: The supplied information contains different air-supply figures in different sections. The detailed specification lists 8–12 Bar, while another product-detail entry states 10 Bar. Please confirm the applicable operating pressure from the manufacturer's technical documentation before installation.

Efficient Tyre Mounting and Demounting

The John Bean T2500 is designed to simplify common tyre service procedures. Its pneumatic bead breaker helps separate the tyre bead from the rim, while the adjustable mounting head supports positioning during mounting and demounting.

The tilt-back post provides additional working convenience, particularly when technicians need improved access to the wheel during tyre-changing operations.

For safe operation, technicians should use the correct tools and procedures for the specific wheel and tyre combination.

Suitable for RFT Tyres

Run-flat tyres require appropriate handling techniques because of their construction and mounting characteristics. The T2500 is specified as suitable for handling RFT tyres, making it a useful option for workshops that service compatible run-flat applications.

Always verify tyre specifications, wheel dimensions, manufacturer recommendations, and machine compatibility before beginning work.

Pneumatic Bead Breaking System

The double-acting pneumatic bead breaker cylinder is designed to provide controlled bead-breaking force. With a specified bead breaker force of 10 kN, the system supports suitable tyre removal procedures within its operating limits.

Proper positioning of the wheel and correct bead-breaking technique are important to minimize the risk of damage to tyres and rims.

Workshop Applications

The John Bean T2500 Tyre Changer can be used for suitable applications such as:

Car tyre changing

Wheel mounting and demounting

RFT tyre servicing

Tyre replacement

Wheel service

Automotive workshop operations

Tyre shop applications

Vehicle service center operations

The machine should be used only for compatible wheel and tyre sizes and according to the manufacturer's operating instructions.

Wheel Size Compatibility

The supplied specifications provide the following clamping ranges:

Outer clamping: 10–20 inches

Inside clamping: 12–22 inches

Maximum tyre width: 13 inches / 330 mm

Maximum tyre diameter: 1000 mm

These figures should be used as a reference for application planning. Actual compatibility can depend on wheel design, tyre construction, rim profile, and the machine's approved operating specifications.

Professional Workshop Benefits

🚗 Suitable for compatible RFT tyres

⚙️ Tilt-back pneumatic post

💨 Double-acting bead breaker cylinder

🔧 Adjustable mounting head

🛞 10–20 inch outer clamping range

📐 12–22 inch inside clamping range

💪 10 kN specified bead breaker force

📏 Up to 330 mm tyre width

🔄 Up to 1000 mm tyre diameter

🏢 Suitable for professional tyre service environments

Why Choose John Bean T2500?

The John Bean T2500 Tyre Changer brings together pneumatic bead breaking, a tilt-back post, adjustable mounting head, and broad wheel-handling specifications in a workshop-focused machine.

Its RFT tyre compatibility and pneumatic operating system make it suitable for tyre shops, automotive service centers, garages, and wheel service businesses handling compatible vehicle tyres.

Before purchasing or installing the machine, workshops should verify the required wheel range, tyre dimensions, air pressure, electrical or pneumatic infrastructure, available installation space, and compatibility with their intended applications.

Frequently Asked Questions

What is the John Bean T2500?

The John Bean T2500 is a professional pneumatic tyre changer designed for suitable tyre mounting and demounting applications.

Can the T2500 handle RFT tyres?

Yes. The supplied product information states that the T2500 is suitable for handling compatible Run-Flat Tyres.

What is the outer clamping range?

The specified outer clamping range is 10–20 inches.

What is the inside clamping range?

The specified inside clamping range is 12–22 inches.

What is the maximum tyre width?

The maximum listed tyre width is 13 inches or 330 mm.

What is the maximum tyre diameter?

The specified maximum tyre diameter is 1000 mm.

What type of bead breaker does the machine use?

It uses a double-acting pneumatic bead breaker cylinder.

What is the bead breaker force?

The supplied specification lists a bead breaker force of 10 kN.

What type of post does the T2500 have?

The T2500 features a tilt-back post with pneumatic pedal control.

Is the mounting head adjustable?

Yes. The mounting head is designed for vertical and lateral adjustment.

What air pressure is required?

The detailed specification lists compressed air supply of 8–12 Bar. Another supplied entry states 10 Bar, so the applicable operating pressure should be confirmed from the manufacturer's documentation.

Where can the T2500 be used?

It can be used in compatible tyre shops, automotive workshops, vehicle service centers, garages, and professional wheel service facilities.

John Bean T2500 Tyre Changer is a professional pneumatic tyre changing machine designed for compatible automotive workshop, tyre shop, and wheel service applications. It features a tilt-back post, pneumatic pedal control, double-acting bead breaker cylinder, and vertically and laterally adjustable mounting head. The supplied specifications include a 10–20 inch outer clamping range, 12–22 inch inside clamping range, maximum tyre width of 13 inches (330 mm), and maximum tyre diameter of 1000 mm. With specified compatibility for RFT tyres and a 10 kN bead breaker force, the John Bean T2500 provides a practical solution for tyre mounting, demounting, replacement, and professional wheel service operations.
