T3000 Tyre Changer

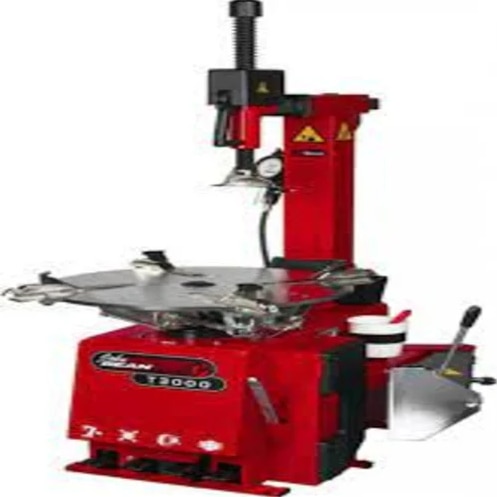

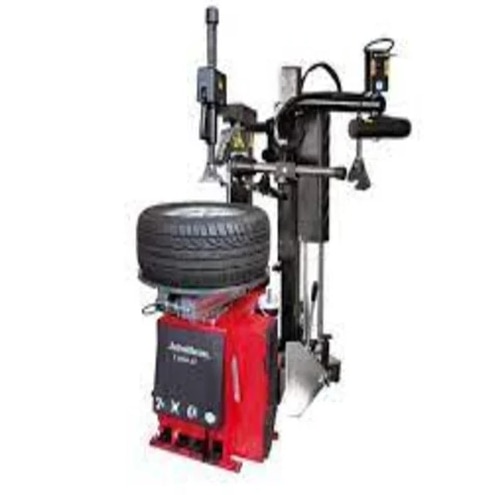

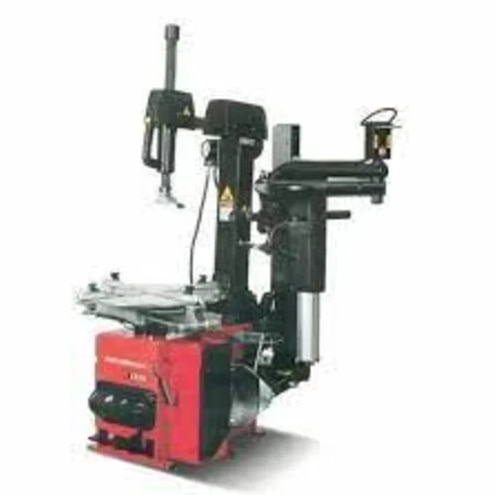

T3000 John Bean Tyre Changer

The T3000 John Bean Tyre Changer is a professional-grade tyre servicing machine designed for tyre shops, automobile workshops, service garages, and automotive facilities handling medium to high tyre service volumes. Developed for efficient tyre mounting and demounting operations, the machine combines a robust construction with pneumatic controls, a self-centering four-jaw turntable, and a powerful bead breaker system.

The T3000 is suitable for handling a broad range of automotive tyres, including RFT (Run-Flat Tyres). Its pneumatically controlled tilt-back post provides convenient access to the wheel, while the adjustable mounting head helps maintain a suitable working position during tyre servicing.

With a maximum wheel diameter of 1000 mm, maximum wheel weight of 70 kg, and clamping capability up to 22 inches on the inner side, the T3000 is a practical choice for professional tyre service operations.

Product Specifications

Parameter Specification

Product Name T3000 John Bean Tyre Changer

Brand John Bean

Machine Type Tyre Changer

Phase Single Phase

Voltage 230 V

Frequency 50 Hz

Machine Weight 200 kg

Maximum Wheel Diameter 1000 mm

Maximum Wheel Weight 70 kg

Outer Clamping Range 10–20 Inch

Inner Clamping Range 12–22 Inch

Rim Width Up to 12 Inch

Maximum Tyre Width Up to 13 Inch

Bead Breaking Range 40–340 mm

Bead Breaking Width 340 mm

Turntable Speed 7 rpm

Compressed Air Connection 8–12 Bar

Maximum Specified Air Connection 12 Bar

Height 1490 mm

Width 790 mm

Depth 965 mm

Key Features

⚙️ Suitable for RFT Tyres

The T3000 tyre changer is designed to support servicing requirements involving RFT and other challenging tyre types.

🔄 Pneumatic Tilt-Back Post

Its tilt-back post is operated through pneumatic pedal controls, providing convenient access during tyre mounting and demounting operations.

🔧 Double-Acting Bead Breaker

The double-acting pneumatic bead breaker cylinder delivers controlled force for separating the tyre bead from the wheel rim.

🎯 Self-Centering Four-Jaw Turntable

The four-jaw self-centering clamping system helps position and secure the rim accurately during servicing.

📏 Wide Rim Clamping Capacity

The machine offers an outer clamping range of 10–20 inches and an inner clamping range of 12–22 inches.

🚗 Large Tyre Handling Capability

The T3000 can handle wheel diameters up to 1000 mm and tyre widths up to the specified 13-inch capacity.

💪 Heavy-Duty Construction

With a machine weight of approximately 200 kg, the T3000 provides a stable platform for regular professional workshop operations.

🛠️ Adjustable Mounting Head

The mounting head can be adjusted vertically and laterally to maintain an appropriate position relative to the rim during tyre servicing.

💨 Integrated Servicing Unit

The pneumatic servicing arrangement includes an oiler and water separator to support reliable compressed-air operation.

T3000 Tyre Changer Working

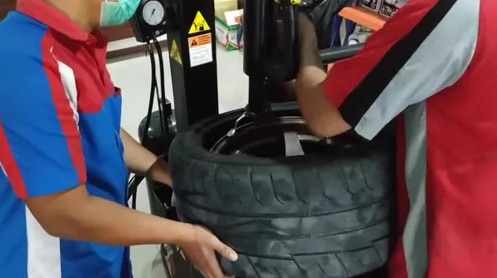

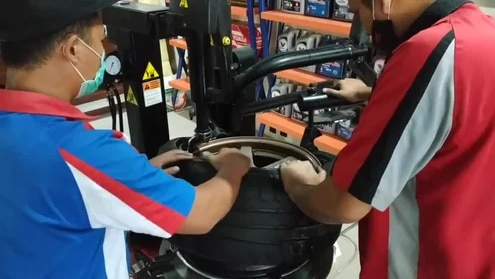

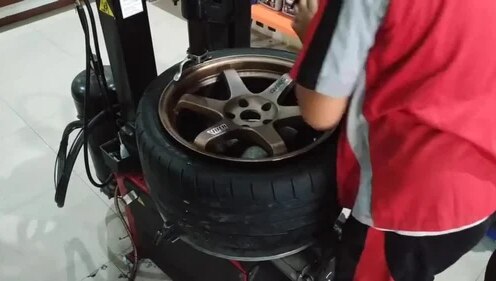

The wheel is first positioned on the self-centering four-jaw turntable and securely clamped. The pneumatic bead breaker is then used to separate the tyre bead from the rim. Once the bead has been released, the mounting head is positioned according to the wheel and tyre requirements. The turntable rotates at the specified speed while the operator performs the mounting or demounting process.

The tilt-back post provides additional working convenience, particularly when servicing tyres that require greater clearance around the rim.

Applications

The T3000 John Bean Tyre Changer is suitable for:

Tyre shops

Automobile service garages

Automotive workshops

Car tyre service centers

Vehicle dealerships

Tyre dealerships

Multi-brand automobile service centers

RFT tyre servicing facilities

Professional vehicle maintenance centers

Medium to high-volume tyre service workshops

Why Choose T3000 John Bean Tyre Changer?

The T3000 is designed for professional tyre service environments where reliability, versatility, and efficient operation are important. Its self-centering four-jaw turntable, pneumatic tilt-back post, double-acting bead breaker, adjustable mounting head, and compatibility with RFT tyres make it suitable for demanding tyre mounting and demounting applications.

The machine's 1000 mm maximum wheel diameter, 70 kg maximum wheel weight, and 10–20 inch outer / 12–22 inch inner clamping ranges allow it to accommodate a wide variety of automotive wheel and tyre combinations.

T3000 Tyre Changer Advantages

Professional solution for medium to high-volume tyre servicing

Suitable for RFT tyre applications

Pneumatic tilt-back column for convenient operation

Four-jaw self-centering rim clamping

Double-acting pneumatic bead breaker

Adjustable mounting head

Maximum wheel diameter up to 1000 mm

Maximum wheel weight up to 70 kg

Bead breaking range of 40–340 mm

Oiler and water separator included

Robust 200 kg machine construction

Suitable for professional automotive workshops

Frequently Searched Product Terms

T3000 Tyre Changer, T3000 John Bean Tyre Changer, John Bean T3000 Tyre Changer, John Bean Tyre Changer, T3000 Tyre Changing Machine, John Bean Tyre Changing Machine, RFT Tyre Changer, pneumatic tyre changer, tilt back tyre changer, professional tyre changer, automobile tyre changer, car tyre changing machine, tyre mounting machine, tyre demounting machine, tyre service machine, automotive tyre changer, workshop tyre changer, John Bean tyre machine.

Product Summary

The T3000 John Bean Tyre Changer is a heavy-duty single-phase tyre servicing machine designed for professional workshops and tyre service centers. It features a self-centering four-jaw turntable, pneumatic tilt-back post, double-acting bead breaker, adjustable mounting head, and integrated oiler and water separator. With a maximum wheel diameter of 1000 mm, maximum wheel weight of 70 kg, and inner clamping capability up to 22 inches, the T3000 provides a versatile solution for regular tyre mounting and demounting operations, including RFT tyre servicing.
