T5320 2S Pro Tyre Changers

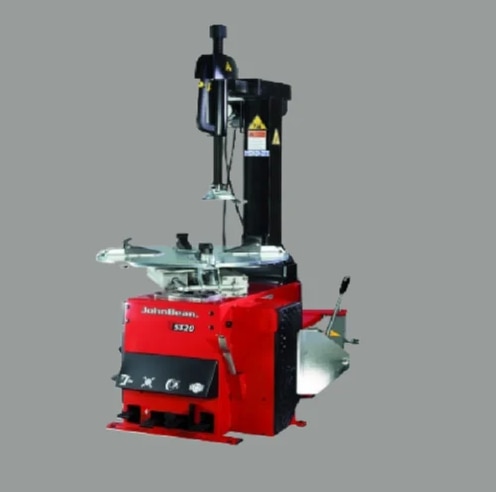

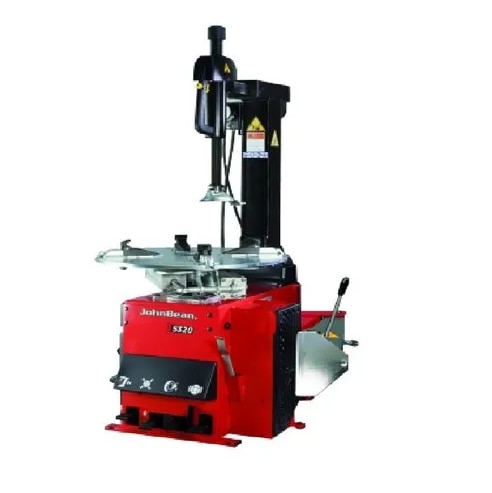

John Bean T5320 2S Pro Tyre Changer

John Bean T5320 2S Pro Tyre Changer is an automatic tyre changing machine designed for professional automotive workshops, tyre service centers, garages, and wheel service applications. Equipped with PROspeed inverter technology, the machine automatically adjusts operating speed according to the torque applied, helping technicians manage different tyre mounting and demounting tasks with greater control.

The T5320 2S Pro features a self-centring four-jaw turntable, double-acting bead breaker cylinder, pneumatic tilt-back post, adjustable mounting head, and an outer clamping range of up to 22 inches.

🚗 A practical choice for workshops looking for controlled, efficient, and versatile tyre servicing equipment.

Key Features

⚙️ PROspeed Inverter Technology

The PROspeed system automatically adjusts the machine speed according to the torque applied. This helps optimize operating speed for different tyre service requirements.

🐢 Low-Speed Operation

The first speed can operate as low as 7 rpm, providing greater control during critical tyre mounting and demounting procedures.

🔄 Automatic Second-Speed Adjustment

The second speed automatically adjusts between 7 and 18 rpm according to the applied torque.

💨 Double-Acting Bead Breaker

The double-acting pneumatic bead breaker cylinder supports controlled tyre bead separation.

🛞 Self-Centring Four-Jaw Turntable

The four-jaw turntable is designed to securely centre compatible wheels during tyre service operations.

🛡️ Rim Protection

Plastic protection is provided inside the jaws and on the mounting head to help reduce the possibility of damage to alloy rims during operation.

📐 Adjustable Mounting Head

The mounting head can be positioned with a spaced-apart arrangement relative to the rim for suitable wheel servicing requirements.

↩️ Pneumatic Tilt-Back Post

The post is operated through pneumatic pedal control and pneumatically locked in the working position.

💨 Integrated Tyre Inflator

A pedal-operated tyre inflator with pressure gauge is fitted on the tower, along with a quick-inflating valve.

Product Specifications

Specification Details

Brand John Bean

Model T5320 2S Pro

Product Type Automatic Tyre Changer

Automation Grade Automatic

Phase Single Phase

Voltage 230 V

Frequency 50 Hz

Outer Clamping Range Up to 22 Inch

First Speed As low as 7 rpm

Second Speed 7–18 rpm, automatically adjusted

Bead Breaker Double-Acting Pneumatic

Turntable Self-Centring Four-Jaw

Post Pneumatic Tilt-Back

Mounting Head Adjustable

Tyre Inflator Pedal Operated with Pressure Gauge

Quick Inflation Yes

Bead Breaker Positions 3 Adjustable Positions

Optional Wheel Lift CW1015

Professional Tyre Service Performance

The John Bean T5320 2S Pro is designed to support a broad range of wheel and tyre servicing operations. Its automatic speed management helps the operator maintain appropriate machine speed according to the resistance encountered during the procedure.

The combination of controlled rotation, pneumatic bead breaking, adjustable mounting head, and self-centring turntable helps create a more organized tyre-changing workflow.

The machine is specified as capable of mounting and demounting the majority of wheel assemblies available in the market, subject to wheel, tyre, and machine compatibility.

Wheel Protection Design

Alloy wheels require careful handling during tyre removal and installation. The T5320 2S Pro incorporates plastic protection inside the jaws and on the mounting head to help minimize contact-related damage during suitable operations.

Correct machine setup, mounting head adjustment, tyre lubrication, and technician technique remain important for protecting wheels and tyres.

Pneumatic Tilt-Back Post

The pneumatic tilt-back post provides convenient access to the wheel during mounting and demounting. Its pedal-operated design allows the technician to control the post during normal workshop operation.

The post is pneumatically locked into its working position, helping maintain the required operating configuration during tyre service procedures.

Adjustable Bead Breaker

The bead breaker can be adjusted into three positions, providing flexibility for different wheel and tyre servicing requirements.

The double-acting pneumatic cylinder provides controlled bead-breaking action, helping technicians separate the tyre bead from the rim before mounting or demounting.

Integrated Inflation System

The machine includes a pedal-operated tyre inflator with an integrated pressure gauge fitted on the tower. A quick-inflating valve is also provided to support efficient inflation procedures.

Tyre pressure should always be set according to the vehicle or tyre manufacturer's recommended specifications.

Workshop Applications

John Bean T5320 2S Pro Tyre Changer can be used for suitable applications such as:

Car tyre changing

Wheel mounting

Wheel demounting

Tyre replacement

Automotive wheel servicing

Tyre shop operations

Vehicle service center applications

Professional garage operations

General wheel and tyre maintenance

The machine should only be used with compatible wheels and tyres and according to the manufacturer's operating instructions.

Workshop Benefits

🚗 Automatic tyre changing operation

⚙️ PROspeed inverter-based speed control

🐢 Rotation speed as low as 7 rpm

🔄 Automatic 7–18 rpm second-speed adjustment

💨 Double-acting pneumatic bead breaker

🛞 Self-centring four-jaw turntable

🛡️ Plastic rim protection

↩️ Pneumatic tilt-back post

📐 Up to 22-inch outer clamping range

💨 Integrated tyre inflation system

🔧 Three-position adjustable bead breaker

🏢 Suitable for professional tyre service environments

Optional Wheel Lift

The John Bean T5320 2S Pro can be equipped with the optional CW1015 wheel lift, as specified in the supplied product information. The optional accessory can be considered where workshops require additional assistance in positioning suitable wheels for tyre-changing operations.

Availability and compatibility should be confirmed before ordering.

Why Choose John Bean T5320 2S Pro?

The John Bean T5320 2S Pro combines automatic operation, inverter-based speed control, pneumatic bead breaking, a self-centring four-jaw turntable, rim-protection components, and a pneumatic tilt-back post.

Its ability to automatically adjust speed according to applied torque can provide technicians with greater control across different tyre service tasks. With an outer clamping range of up to 22 inches, it can support a broad selection of compatible wheel assemblies.

Frequently Asked Questions

What is the John Bean T5320 2S Pro?

It is an automatic tyre changer designed for professional wheel and tyre servicing applications.

What is the outer clamping range?

The specified outer clamping range is up to 22 inches.

What type of turntable does the machine use?

The machine features a self-centring four-jaw turntable.

What is PROspeed technology?

PROspeed is an inverter-based speed control system that automatically adjusts machine speed according to the torque applied.

What is the lowest operating speed?

The first speed can operate as low as 7 rpm.

What is the second-speed range?

The second speed automatically adjusts between 7 and 18 rpm depending on the applied torque.

Does the machine have a bead breaker?

Yes. It features a double-acting pneumatic bead breaker cylinder with three adjustable positions.

Is the mounting head adjustable?

Yes. The mounting head can be adjusted in a spaced-apart position relative to the rim.

Does the machine protect alloy wheels?

Plastic protection is provided inside the jaws and on the mounting head to help reduce the risk of wheel damage during suitable operations.

What type of post does the T5320 use?

It uses a pedal-operated pneumatic tilt-back post that is pneumatically locked in the working position.

Does it include a tyre inflator?

Yes. A pedal-operated tyre inflator with a pressure gauge is fitted on the tower, along with a quick-inflating valve.

What electrical supply does it require?

The supplied specifications state 230 V, single phase, 50 Hz.

Is a wheel lift available?

Yes. CW1015 is listed as an optional wheel lift.

John Bean T5320 2S Pro Tyre Changer is an automatic tyre changing machine designed for professional automotive workshops, tyre shops, garages, and wheel service centers. It features PROspeed inverter technology with automatic speed adjustment, a first speed as low as 7 rpm, and a second speed that automatically varies between 7 and 18 rpm according to applied torque. The machine includes a double-acting pneumatic bead breaker, self-centring four-jaw turntable, adjustable mounting head, pneumatic tilt-back post, alloy-rim protection, integrated tyre inflator, and quick-inflating valve. With an outer clamping range up to 22 inches and 230 V single-phase operation, it provides a versatile solution for compatible tyre mounting and demounting applications.
