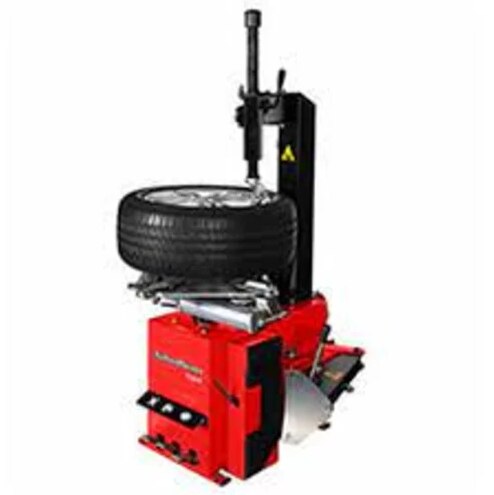

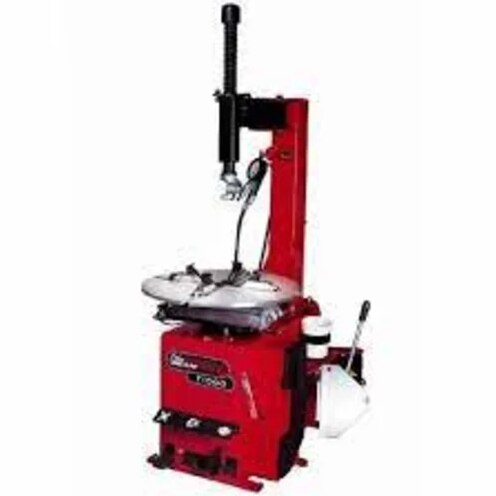

T900 John Bean Tyre Changer

T900 John Bean Tyre Changer

The T900 John Bean Tyre Changer is a professional tyre servicing machine designed for efficient tyre mounting and demounting operations in automobile workshops, tyre service centers, garages, dealerships, and vehicle maintenance facilities. With a robust construction, pneumatic bead breaker, self-centering clamping jaws, and side-swing mounting arm, the machine is designed to provide reliable performance during regular tyre servicing applications.

The T900 tyre changer supports an outside rim clamping range of 10 to 20 inches and an inside clamping range of 12 to 22 inches. It can accommodate tyres up to 13 inches (330 mm) in width and up to 1000 mm in diameter, making it suitable for a wide range of passenger vehicle tyre servicing requirements.

Product Specifications

Parameter Specification

Product Name T900 John Bean Tyre Changer

Model Name/Number T900

Brand John Bean

Machine Type Tyre Changer

Phase Single Phase

Voltage 230 V

Frequency 50 Hz

Outside Clamping Range 10–20 Inch

Inside Clamping Range 12–22 Inch

Maximum Tyre Width 13 Inch / 330 mm

Maximum Tyre Diameter 1000 mm

Maximum Bead Breaking Width 330 mm

Chuck Speed 6.5 rpm

Compressed Air Supply 8–12 Bar

Number of Pedals 3

Clamping Cylinder Diameter 70 mm

Key Features

⚙️ Self-Centering Rim Clamping

The self-centering jaw mechanism helps hold the wheel rim securely during tyre mounting and demounting operations.

🔧 Pneumatic Bead Breaker

The double-acting bead breaker cylinder provides controlled pneumatic force for separating the tyre bead from the rim.

🚗 Wide Tyre Handling Capacity

The machine supports tyre widths up to 13 inches (330 mm) and tyre diameters up to 1000 mm for versatile automotive tyre servicing.

📏 Flexible Rim Clamping

The T900 provides an outside clamping range of 10–20 inches and an inside clamping range of 12–22 inches.

🏗️ Rugged Construction

Its sturdy mechanical design is intended for regular use in professional automotive workshops and tyre service environments.

↔️ Space-Saving Mounting Arm

The side-swing mounting arm helps reduce the working space required around the machine and allows convenient workshop installation.

💨 Integrated Pneumatic Accessories

The machine includes an oiler, water separator, and tyre inflator arrangement to support pneumatic tyre servicing operations.

🎛️ Three-Pedal Operation

The three-pedal control arrangement allows convenient operation of the major tyre changing functions.

Working of T900 John Bean Tyre Changer

The wheel is positioned on the turntable and secured using the self-centering clamping jaws. The bead breaker is then used to separate the tyre bead from the rim. After bead separation, the mounting head and rotating chuck assist in removing the existing tyre and fitting the replacement tyre. The pneumatic controls allow the operator to perform the tyre changing process in a controlled and efficient manner.

Applications

The T900 John Bean Tyre Changer is suitable for:

Automobile workshops

Car tyre service centers

Automotive repair garages

Tyre dealerships

Vehicle service stations

Automobile dealerships

Multi-brand service centers

Professional tyre maintenance facilities

Passenger vehicle servicing workshops

Why Choose the T900 John Bean Tyre Changer?

The T900 is designed for workshops that require a dependable tyre changing machine for regular mounting and demounting operations. Its combination of self-centering rim clamping, pneumatic bead breaking, practical tyre handling capacity, rugged construction, and compact side-swing arm makes it a suitable solution for professional tyre servicing applications.

With John Bean branding and specifications designed for workshop use, the T900 can help tyre technicians perform routine tyre replacement and servicing operations with greater convenience and consistency.

Frequently Searched Product Terms

T900 John Bean Tyre Changer, John Bean T900 Tyre Changer, John Bean Tyre Changer, T900 Tyre Changer Machine, John Bean Tyre Changing Machine, T900 Tyre Changing Machine, John Bean Tyre Machine, pneumatic tyre changer, tyre mounting machine, tyre demounting machine, automobile tyre changer, car tyre changer, professional tyre changer, workshop tyre changer, tyre service machine, automotive tyre changing machine.

Product Summary

The T900 John Bean Tyre Changer is a single-phase 230 V tyre servicing machine with a 10–20 inch outside clamping range, 12–22 inch inside clamping range, 330 mm maximum tyre width, and 1000 mm maximum tyre diameter. Its self-centering jaws, pneumatic bead breaker, three-pedal control system, and side-swing mounting arm make it suitable for professional automobile workshops and tyre service centers requiring efficient tyre mounting and demounting operations.
