Two Post Lift
Description

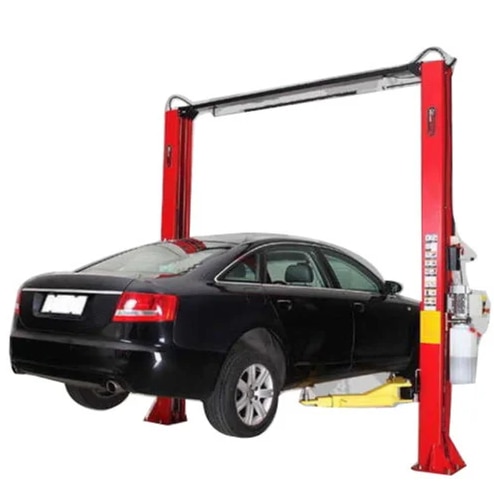

Blue Point Two Post Lift
Blue Point Two Post Lift Model EELRIN703 is a professional electro-hydraulic vehicle lifting system designed for automotive body shops, service centers, repair garages, and vehicle maintenance facilities. With a 4,000 kg lifting capacity, asymmetric arms, clear-floor column design, and automatic locking system, this two-post lift provides a practical solution for lifting compatible vehicles during servicing and repair operations.
The lift is engineered with a mild steel structure and paint-coated finish for professional workshop environments. Its single-side control arrangement and bottom-release mechanism support convenient operation, while the 1,900 mm maximum lifting height provides useful access for under-vehicle inspection and maintenance.
š Suitable for professional automotive workshops requiring a reliable 4-ton vehicle lifting solution.
Key Features
šļø 4-Ton Lifting Capacity
The Blue Point Two Post Lift has a specified 4,000 kg capacity for compatible vehicles within the recommended operating limits.
āļø Electro-Hydraulic Operation
The electro-hydraulic lifting system provides controlled vehicle raising and lowering for workshop servicing applications.
šļø Clear Floor Design
The clear-floor column configuration helps maintain an open working area between the two columns, making movement around the vehicle more convenient.
š Asymmetric Arms
The asymmetric arm arrangement supports suitable vehicle positioning and lifting-point access.
š Automatic Locking System
An automatic locking system is provided to support secure positioning during lifting operations.
ā¬ļø Bottom Release Mechanism
The bottom-release configuration provides a practical method for operating the lift's locking mechanism.
š 1,900 mm Maximum Lift Height
The specified maximum lift height provides technicians with increased access for suitable underbody service and maintenance tasks.
š ļø Mild Steel Construction
The body is manufactured from mild steel and features a paint-coated finish for workshop use.
Product Specifications
Specification Details
Brand Blue Point
Model EELRIN703
Item Code BLP-4T
Product Type Two Post Lift
Lift Type Electro Hydraulic
Load Capacity 4000 kg
Capacity 4000 kg / 4 Ton
Number of Guide Posts 2
Column Type Clear Floor
Arm Type Asymmetric
Maximum Lift Height 1900 mm
Overall Height 3596 mm
Overall Width 3402 mm
Power Supply 415 V Three Phase
Voltage 380 V
Frequency 50 Hz
Phase Three Phase
Body Material Mild Steel
Finish Paint Coated
Locking System Automatic Lock
Release Type Bottom Release
Control Side Single Side
Usage Body Shop, Service
Automotive Workshop Applications
Blue Point Two Post Lift is designed for suitable applications such as:
Car servicing
Vehicle repair
Automotive maintenance
Body shop operations
Brake inspection and service
Suspension inspection
Underbody inspection
Tyre and wheel service
General workshop maintenance
The lift should be used only with vehicles that fall within the specified capacity, dimensions, and operating requirements.
Clear Floor Two-Post Design
The clear-floor configuration is useful for workshops that need convenient access around the vehicle. Unlike designs that place substantial components across the floor area between columns, the clear-floor arrangement can provide a more open workspace for technicians.
This can help support organized workshop movement during servicing, inspection, and repair procedures.
Asymmetric Arm Configuration
The asymmetric arm design allows suitable vehicles to be positioned according to the recommended lifting points. This configuration can provide practical access for technicians while working on vehicles raised above the workshop floor.
Correct lifting-point selection and vehicle positioning are essential for safe operation. Always follow the vehicle manufacturer's lifting recommendations and the lift manufacturer's operating instructions.
Automatic Safety Lock
The automatic locking system is an important part of the lift's safety arrangement. As the lift rises, the locking mechanism is intended to engage according to the equipment's operating design.
The bottom-release mechanism provides access for releasing the locking system when lowering the vehicle. Operators should ensure that the applicable safety locks are correctly engaged before carrying out work beneath a raised vehicle.
Workshop Benefits
š 4,000 kg lifting capacity
āļø Electro-hydraulic lifting system
šļø Clear-floor configuration
š Asymmetric lifting arms
š Automatic locking system
ā¬ļø Bottom-release mechanism
š 1,900 mm maximum lift height
š ļø Mild steel construction
ā” Three-phase electrical operation
š¢ Suitable for body shops and service workshops
Suitable for Professional Service Facilities
The Blue Point EELRIN703 Two Post Lift can be considered for automotive service businesses requiring a fixed lifting system for compatible vehicles.
Its 4-ton capacity, clear-floor design, asymmetric arms, automatic locking arrangement, and electro-hydraulic operation make it suitable for a range of workshop tasks where technicians need elevated access to vehicle components.
Before installation, workshops should evaluate available floor space, foundation requirements, electrical supply, vehicle dimensions, lifting points, and the manufacturer's installation specifications.
Electrical and Operating Requirements
The supplied specifications list 380 V and 415 V three-phase electrical requirements, with a frequency of 50 Hz. Electrical installation should be completed according to the manufacturer's technical documentation and applicable safety requirements.
Professional installation and appropriate commissioning are recommended to ensure the equipment is correctly configured for the intended workshop environment.
Delivery Information
Item Code: BLP-4T
Model: EELRIN703
Delivery Time: 1ā2 Weeks
Delivery schedules may depend on order confirmation, stock availability, transportation, and installation requirements.
Frequently Asked Questions
What is the lifting capacity of the Blue Point Two Post Lift?
The specified lifting capacity is 4,000 kg or 4 tons.
What is the model number?
The model is EELRIN703 and the item code is BLP-4T.
What type of lift is it?
It is an electro-hydraulic two-post vehicle lift.
How many posts does the lift have?
The system uses two guide posts.
What is the maximum lifting height?
The specified maximum lift height is 1,900 mm.
What type of columns does it use?
The lift features a clear-floor column configuration.
What type of arms are provided?
The product uses asymmetric lifting arms.
What safety locking system is included?
An automatic locking system is provided, along with a bottom-release mechanism.
What is the overall height?
The specified overall height is 3,596 mm.
What is the overall width?
The specified overall width is 3,402 mm.
What electrical supply is required?
The specifications list 380 V / 415 V, three-phase, 50 Hz electrical operation.
Where can this two-post lift be used?
It is specified for body shops and vehicle service applications, making it suitable for compatible automotive repair, maintenance, and servicing environments.
Blue Point Two Post Lift EELRIN703 is a 4-ton electro-hydraulic vehicle lifting system designed for automotive body shops, service centers, repair garages, and maintenance facilities. Featuring a clear-floor two-post configuration, asymmetric arms, automatic locking system, bottom release, and 1,900 mm maximum lifting height, it provides a practical solution for compatible vehicle servicing and repair applications. The lift has a mild steel construction with a paint-coated finish and operates on three-phase electrical power at the specified 380ā415 V, 50 Hz configuration. With a 4,000 kg capacity and professional workshop-oriented design, the Blue Point BLP-4T is suitable for businesses requiring efficient access to vehicles during maintenance and repair operations.
