Vehicle Scissor Lift
Description

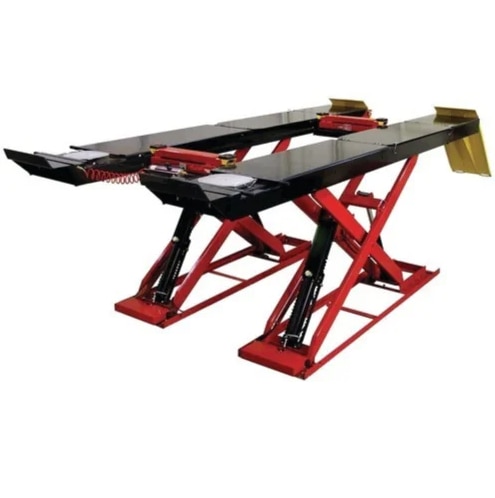

John Bean Vehicle Scissor Lift
John Bean Vehicle Scissor Lift Model 48109B is a professional hydraulic lifting solution designed for automotive workshops, wheel alignment centers, service stations, and vehicle maintenance facilities. With a specified 4-ton (9,000 lbs) capacity and a lifting height of up to approximately 2 meters, this stationary scissor lift provides convenient access for vehicle servicing and alignment-related operations.
Its open-center design provides improved access to the underside of the vehicle, while the low minimum height makes it suitable for compatible low-profile vehicles. The hydraulic lifting system is designed for smooth raising and lowering, supporting efficient workshop operations.
š A practical choice for professional vehicle servicing and 4-wheel alignment applications.
Key Features
šļø Heavy-Duty 4-Ton Capacity
The lift is specified with a 4-ton or 9,000 lbs capacity, suitable for compatible vehicles within the recommended operating limits.
ā¬ļø High Lifting Height
The maximum raised height is specified at 1,830 mm, providing convenient working access and greater standing comfort for technicians.
ā¬ļø Low Minimum Height
With a specified minimum lowered height of 222 mm, the lift can accommodate suitable low-profile vehicles.
āļø Hydraulic Lifting System
The hydraulic drive provides controlled upward and downward movement for workshop lifting applications.
š Open-Center Design
The front and rear open-center configuration provides improved access beneath the vehicle during servicing and alignment procedures.
š”ļø Dual Safety Mechanisms
Two safety mechanisms are incorporated to support operator protection during lifting operations.
š§ Hydraulic Synchronization
The supplied product information specifies hydraulic synchronization without chains or cables, reducing dependence on components that can experience cable or chain wear.
š Alignment-Friendly Configuration
The lift provides a specified 4-wheel alignment service wheelbase of 3,657 mm (144 inches), making it suitable for compatible alignment workshop applications.
Product Specifications
Specification Details
Brand John Bean
Model 48109B
Product Type Vehicle Scissor Lift
Lifting Height 2 m
Load Capacity 3500 kg
Rated Capacity 4 Tons / 9000 lbs
Mobility Stationary / Fixed
Running Mode Stationary
Power Source Electric AC
Lift Drive Hydraulic
Material Mild Steel
Voltage 380ā415 V
Power Three Phase
Frequency 50/60 Hz
Phase Three Phase
Finish Paint Coated
Platform Size 3000 Ć 1600 mm
Max. Raised Height 1830 mm / 72 in
Minimum Lowered Height 222 mm / 8.75 in
Overall Length 5943 mm / 234 in
Runway Width 2133 mm / 84 in
4-Wheel Alignment Service Wheelbase 3657 mm / 144 in
Alignment Height Positions 7
Lift Time 60 seconds
Vehicle Servicing Applications
John Bean Vehicle Scissor Lift can be used for suitable automotive workshop applications, including:
Vehicle servicing
Wheel alignment
Underbody inspection
Automotive maintenance
Suspension inspection
Tyre and wheel service
Brake service
Vehicle repair
General workshop operations
The lift should only be used with vehicles that comply with its rated capacity, dimensions, and operating requirements.
Designed for Wheel Alignment Workshops
The John Bean 48109B Vehicle Scissor Lift is particularly suited to workshops that perform four-wheel alignment and related vehicle servicing. Its specified 3,657 mm (144-inch) alignment service wheelbase provides a useful working range for compatible vehicles.
The open-center structure helps technicians access the underside of the vehicle, while the elevated working position can provide greater comfort during alignment adjustments and inspection work.
For accurate application planning, workshops should verify vehicle wheelbase, weight, runway dimensions, installation requirements, and alignment equipment compatibility.
Smooth Hydraulic Operation
The hydraulic lift drive is designed to provide controlled raising and lowering of the platform. Hydraulic synchronization eliminates the need for chains or cables for the specified synchronization arrangement, which can simplify the lifting system and reduce exposure to chain or cable wear.
The stated lift time is approximately 60 seconds. Actual operating performance may depend on installation conditions, equipment configuration, electrical supply, vehicle load, and operating environment.
Open Center for Better Accessibility
A major feature of the John Bean Vehicle Scissor Lift is its open-center configuration. The open area at the front and rear can provide technicians with improved access beneath the vehicle during inspection, repair, and alignment-related work.
This arrangement can help create a more convenient working position for technicians and support efficient workshop workflow.
Benefits for Automotive Workshops
š 4-ton lifting capacity
āļø Hydraulic lifting operation
š Suitable for compatible 4-wheel alignment applications
ā¬ļø Low-profile 222 mm minimum height
ā¬ļø Up to 1,830 mm specified raised height
š Open-center vehicle access
š”ļø Two safety mechanisms
š§ Hydraulic synchronization
š 3,657 mm alignment service wheelbase
š¢ Stationary workshop installation
Suitable for
š ļø Automotive Workshops
š Car Service Centers
š Wheel Alignment Centers
š Tyre Service Workshops
š§ Vehicle Repair Garages
š¢ Automobile Dealership Workshops
š Vehicle Maintenance Facilities
Safety and Installation
Vehicle lifting equipment should always be installed and operated according to the manufacturer's instructions and applicable workshop safety requirements.
Before lifting a vehicle, confirm that its weight and dimensions are within the equipment's rated limits. The vehicle should be correctly positioned on the runways, and all applicable safety mechanisms should be engaged before technicians work beneath the raised vehicle.
Professional installation, appropriate foundation preparation, electrical connection, regular inspection, and correct operating procedures are important for safe and reliable use.
Why Choose John Bean 48109B?
John Bean Vehicle Scissor Lift 48109B combines hydraulic lifting, a 4-ton rated capacity, open-center access, low-profile entry height, and alignment-oriented dimensions in one professional workshop system.
Its design is suitable for businesses that need a fixed vehicle lift for servicing and four-wheel alignment operations while maintaining convenient under-vehicle access. The combination of hydraulic synchronization and safety mechanisms further supports a structured workshop lifting environment.
Frequently Asked Questions
What is the capacity of the John Bean 48109B?
The supplied specifications state a rated capacity of 4 tons or 9,000 lbs, while the load capacity is listed as 3,500 kg.
What is the maximum lifting height?
The maximum raised height is specified as 1,830 mm, while the lifting height is also described as approximately 2 meters.
What is the minimum lowered height?
The specified minimum lowered height is 222 mm or approximately 8.75 inches.
Is the John Bean 48109B suitable for wheel alignment?
Yes. The product includes a specified 4-wheel alignment service wheelbase of 3,657 mm (144 inches), making it suitable for compatible wheel alignment applications.
What type of lifting system does it use?
It uses a hydraulic lifting system with hydraulic synchronization.
Does the lift use chains or cables for synchronization?
The supplied product information states that hydraulic synchronization eliminates the need for chains or cables in the synchronization system.
What is the runway width?
The specified runway width is 2,133 mm (84 inches).
What is the overall length?
The specified overall length is 5,943 mm (234 inches).
What power supply does the lift require?
The specifications state 380ā415 V, three-phase electrical power at 50/60 Hz.
How long does the lift take to raise?
The supplied lift time specification is 60 seconds.
Is this a mobile lift?
No. The product is specified as stationary or fixed.
Where can this vehicle scissor lift be used?
It can be used in compatible automotive workshops, wheel alignment centers, service stations, tyre workshops, dealerships, and vehicle maintenance facilities.
John Bean Vehicle Scissor Lift Model 48109B is a professional 4-ton automotive hydraulic lift designed for vehicle servicing, wheel alignment, inspection, repair, tyre service, and workshop applications. It features a 3,500 kg listed load capacity, 4-ton / 9,000 lbs rated capacity, 1,830 mm maximum raised height, and 222 mm minimum lowered height. Its open-center design provides convenient under-vehicle accessibility, while hydraulic synchronization eliminates chains or cables in the specified synchronization arrangement. With a 3,657 mm (144-inch) 4-wheel alignment service wheelbase, 2,133 mm runway width, three-phase 380ā415 V operation, and dual safety mechanisms, it is suitable for compatible professional automotive service and alignment facilities.
