3D Wheel Alignment Machine with Automatic DigiSmart Camera Tracking by John Bean

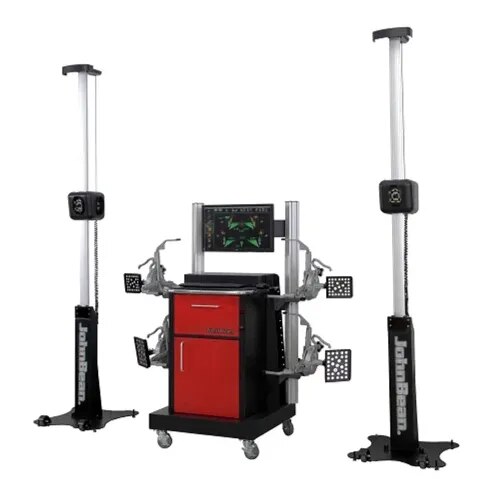

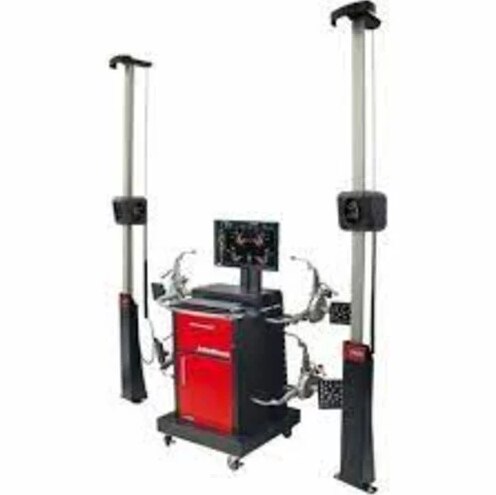

The John Bean 3D Wheel Alignment Machine with DigiSmart automatic camera tracking is a professional wheel alignment solution designed for modern automotive workshops, tyre shops, dealerships, and wheel service centers. It combines 3D imaging technology, XD cameras and targets, automatic camera tracking, touchless wheel clamps, and Pro 42 Platinum3 software to support efficient vehicle alignment inspection and adjustment.

The DigiSmart system automatically tracks the wheel-mounted targets and adjusts camera positioning according to vehicle height. This allows technicians to obtain alignment measurements at different lift heights while reducing the need for repeated manual camera positioning.

The system supports a wide range of compatible vehicles with track widths from 48 to 96 inches, wheelbases from 79 to 180 inches, and wheel diameters from 19 to 39 inches. 🚗🛞

Product Features:

Professional 3D wheel alignment system

John Bean brand

DigiSmart automatic camera tracking

XD camera and XD target technology

AC 400 touchless wheel clamps

Pro 42 Platinum3 alignment software

Automatic camera movement for target detection

Automatic caster sweep

Advanced vehicle dimension measurement

Cross-diagonal measurement

Rolling-radius measurement

Ride-height measurement capability with suitable tip targets

Deluxe cabinet

Aluminium camera beam

Wireless mobility available as an optional feature

22-inch monitor

Suitable for professional automotive workshops

Product Specifications:

Brand: John Bean

Product Type: 3D Wheel Alignment Machine

Technology: 3D

Automation Grade: Automatic

Mounting Type: Mobile

Structure: Electronic

Number of Cameras: 2 Cameras

Camera Quality: XD Camera

Camera Type: XD

Target Type: XD Target

Target: Small XD Target

Monitor Size: 22 Inch

Software: Windows Based

Alignment Software: Pro 42 Platinum3

Clamp Type: AC 400 Touchless

Clamp Weight: 3.2 kg

Camera Beam: Aluminium

Cabinet: Deluxe Cabinet

Rim Diameter Range: 10–24 Inches

Specified Wheel Diameter Range: 19–39 Inches

Track Width: 48–96 Inches

Wheel Base: 79–180 Inches

Maximum Track Width: 96 Inches

Maximum Wheel Base: 180 Inches

Power Source: Electric

Color: Red

Portable: Non-Portable

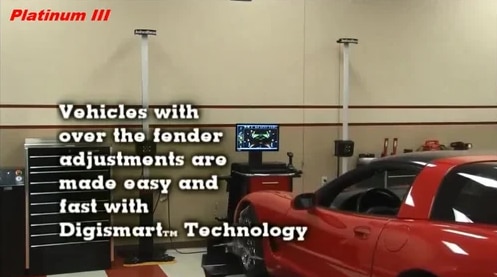

DigiSmart Automatic Camera Tracking:

DigiSmart technology is designed to automatically follow the XD targets mounted on the vehicle wheels. The digital camera tracking system can adjust according to the vehicle's height, allowing the aligner to provide readings at different lift positions.

This feature can make the alignment process more convenient for technicians by reducing manual camera positioning and helping maintain an efficient workflow. 🔧📊

Pro 42 Platinum3 Software:

The Pro 42 Platinum3 software provides a graphical interface for accessing alignment functions and viewing measurement information. Its user-friendly design allows technicians to select relevant options from a centralized interface while performing alignment procedures.

The software-based system can support professional wheel alignment operations, vehicle measurements, diagnostics, and adjustment workflows.

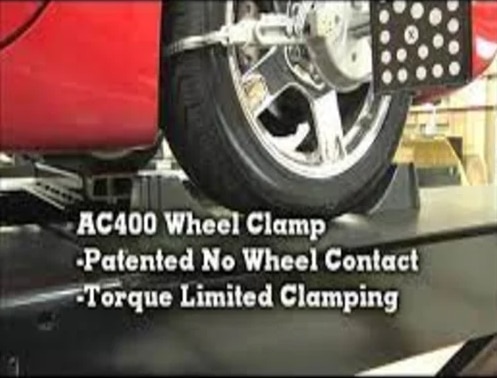

AC 400 Touchless Wheel Clamps:

The AC 400 touchless wheel clamps are designed to work with XD targets while minimizing direct contact with the wheel rim. The 3.2 kg clamp weight provides a practical solution for target mounting during alignment measurements.

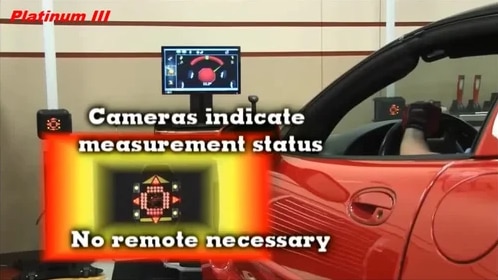

XD Camera and XD Targets:

The XD camera and small XD target system is designed to provide the measurement reference required for 3D imaging alignment. The compact target design is suitable for professional workshop use and is intended to support accurate alignment measurements.

Key Diagnostic Functions:

Cross-Diagonal Measurement:

Cross-diagonal measurements can help technicians identify potential frame or structural discrepancies before making alignment adjustments.

Rolling Radius:

Rolling-radius measurement can help identify mismatched tyre sizes. Differences in tyre rolling radius may contribute to vehicle pulling or other handling concerns and can be useful during alignment diagnostics.

Automatic Caster Sweep:

The system can detect steering-wheel movement and automatically initiate the caster sweep procedure, helping simplify the caster measurement process.

Advanced Vehicle Dimension Measurement:

Vehicle dimension measurements can assist technicians in evaluating vehicle geometry and identifying potential dimensional discrepancies that may require further inspection.

Ride Height Measurement:

Ride-height measurement can be performed with compatible tip targets where supported. This can provide additional vehicle information during alignment diagnostics.

Alignment Measurement Range:

The system supports:

Track width: 48–96 inches

Wheelbase: 79–180 inches

Wheel diameter: 19–39 inches

The listed rim diameter range is 10–24 inches. Vehicle compatibility should be checked against the applicable equipment and software specifications before purchase.

Included Accessories:

The supplied accessories include:

Steering lock

Brake pedal depressor

Wheel stoppers

Turntables

Wheel clamps

Wireless Mobility:

Wireless mobility is available as an optional feature according to the supplied specifications. It can provide greater flexibility for equipment relocation and positioning within suitable workshop environments.

Applications:

The John Bean 3D Wheel Alignment Machine is suitable for:

Car wheel alignment

3D wheel alignment

Passenger vehicle servicing

Tyre service centers

Automotive workshops

Wheel alignment centers

Car dealerships

Suspension and steering service

Vehicle diagnostic centers

Professional automotive service facilities

Benefits for Workshops:

The combination of DigiSmart automatic camera tracking, XD imaging technology, touchless clamps, and Pro 42 Platinum3 software is designed to streamline wheel alignment operations.

Automatic target tracking can reduce manual camera adjustment, while advanced measurement functions can help technicians investigate alignment, vehicle geometry, tyre-radius, and caster-related issues. The 22-inch display and graphical software interface further support convenient operation in professional service environments. 🚗⚙️

Ideal For:

Professional wheel alignment centers

Automotive workshops

Tyre shops

Car dealerships

Multi-brand service centers

Suspension and steering workshops

Vehicle diagnostic facilities

Automotive service stations

Professional garage businesses

Important Specification Note:

The supplied product information mentions both 2 cameras and 3 cameras in different specification fields. The product description above uses the stated 2-camera system as the primary specification while retaining the supplied information. The exact camera configuration, accessories, software version, and optional wireless mobility feature should be confirmed with the supplier before purchase.
