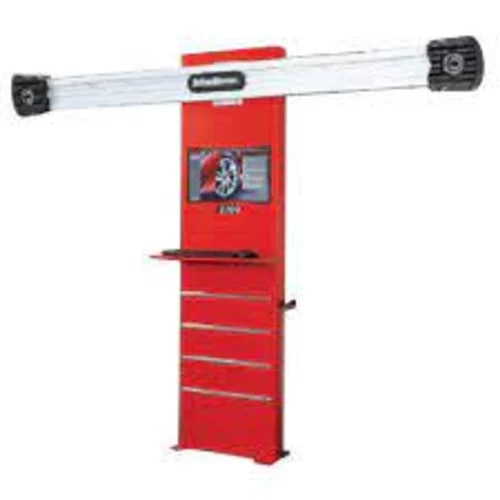

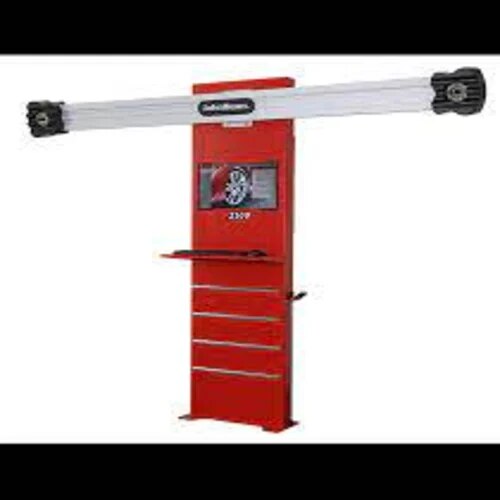

V2100 3D Wheel Alignment Machine

V2100 3D Wheel Alignment Machine by John Bean

The John Bean V2100 3D Wheel Alignment Machine is a next-generation imaging wheel aligner designed for professional automotive workshops, tyre shops, service stations, and vehicle service centers. It combines 3D imaging technology, HD cameras, a 1080P display, and vehicle measurement capabilities to help technicians perform accurate and efficient wheel alignment inspections.

The V2100 is designed for passenger cars, SUVs, and LCVs and supports rim sizes from 11 to 22 inches. Its self-centering rim clamps and dual HD camera system provide a practical setup for modern wheel alignment operations.

With a console-based operating system, Mini PC, 22-inch Full HD monitor, and vehicle pre-alignment measurement capabilities, the V2100 is suitable for workshops looking to improve alignment workflow, productivity, and diagnostic efficiency. 🛞📊

Product Features:

3D imaging wheel alignment technology

John Bean V2100 model

Two HD cameras

5.1-megapixel camera system

1080P 22-inch flat-screen monitor

V.O.D.I.™ technology

Self-centering rim clamps

Vehicle dimension measurement for pre-alignment checks

Console-based operating system

Mini PC system

Supports passenger cars, SUVs, and LCVs

Suitable for rim sizes from 11 to 22 inches

Track width range of 48 to 96 inches

Wheelbase range of 79 to 180 inches

Pit-mounted lift configuration

Standard steering and braking accessories included

Designed for professional wheel alignment operations

Product Specifications:

Brand: John Bean

Model: V2100

Item Code: V2100

Product Type: 3D Wheel Alignment Machine

Mount Type: 3D

Automation Grade: Semi-Automatic

Vehicle Type: Passenger Car, LCV, SUV

Usage/Application: Wheel Alignment

Power Supply: 230 V, 1 Phase, 50 Hz

Voltage: 230 V

Frequency: 50 Hz

Display Type: LED

Monitor Resolution: 1080P

Monitor Size: 22 Inches

Clamp Type: Rim Clamp

Camera System: 2 HD Cameras

Camera Quality: Ultra

Camera Resolution: 5.1 Megapixels

Lift Type: Pit Mounted

Operating Mode: Console Based

Max Wheelbase: 3000 mm

Track Width: 48–96 Inches

Wheel Base: 79–180 Inches

Max Rim Diameter: 22 Inches

Rim Size Range: 11–22 Inches

Wheel Clamp: Self-Centering Clamp AC100

Target Type: 8 × 8 Inch Targets

PC System: Mainboard + Mini PC

Usage: Service Station, Car Workshop, Tyre Shop

Portable: Yes

Vehicle Specifications Database: 30+ Years

Color: Red

Delivery: Immediately

How Does the John Bean V2100 3D Wheel Aligner Work?

The V2100 uses an imaging-based wheel alignment system with two HD cameras and dedicated targets mounted to the wheels. The cameras capture wheel-position information and transfer measurement data to the alignment software.

The system can also assist with vehicle dimension and pre-alignment checks, helping technicians identify potential issues before completing the alignment procedure.

The 22-inch 1080P monitor provides a clear interface for viewing alignment information, while the console-based operating configuration keeps the equipment organized for workshop use. 🚗🔧

Key Benefits:

3D imaging-based alignment measurement

Helps improve workshop productivity

Fast visual measurement workflow

HD camera technology

Full HD 1080P display

Wide vehicle application range

Supports passenger cars, SUVs, and LCVs

Compatible with 11–22 inch rims

Wide track-width coverage

Large wheelbase measurement range

Vehicle pre-alignment and diagnostic checking

Suitable for professional tyre and wheel service

Technical Measurement Range:

The V2100 supports a track width from 48 to 96 inches and a wheelbase range from 79 to 180 inches. It is designed for vehicles using compatible 11–22 inch rims.

Its maximum stated wheelbase is approximately 3000 mm, while the system is suitable for passenger cars, SUVs, and light commercial vehicles within its specified operating range.

Standard Accessories:

The V2100 is supplied with standard accessories including:

Steering lock

Brake pedal depressor

Two wheel chocks

Paddle roll-back kit

Premium turntables

Self-centering wheel clamps

8 × 8 inch alignment targets

Applications:

John Bean V2100 3D Wheel Alignment Machine is suitable for:

Car wheel alignment

3D wheel alignment

Passenger car alignment

SUV wheel alignment

LCV wheel alignment

Tyre service centers

Car workshops

Automobile dealerships

Service stations

Wheel and tyre shops

Professional automotive service facilities

Why Choose the V2100 3D Wheel Alignment Machine?

Modern wheel service businesses require equipment that can provide an efficient measurement workflow while supporting a broad range of vehicles. The John Bean V2100 combines 3D imaging technology, dual HD cameras, self-centering clamps, vehicle measurement capabilities, and a Full HD display in one professional alignment system.

Its wide measurement range and compatibility with passenger cars, SUVs, and LCVs make it a versatile choice for workshops handling different vehicle categories. The included accessories further support day-to-day wheel alignment operations. 🛠️🛞

Installation & Delivery:

The listed delivery status is immediate. Installation, calibration, site requirements, electrical connections, and commissioning should be confirmed with the supplier before purchase. For accurate alignment results, the machine should be installed and calibrated according to John Bean's technical specifications and operating procedures.
