Wheel I-Aligner Gold2

John Bean Wheel I-Aligner Gold2

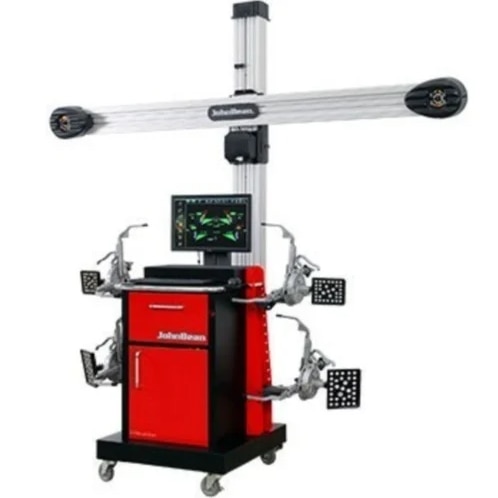

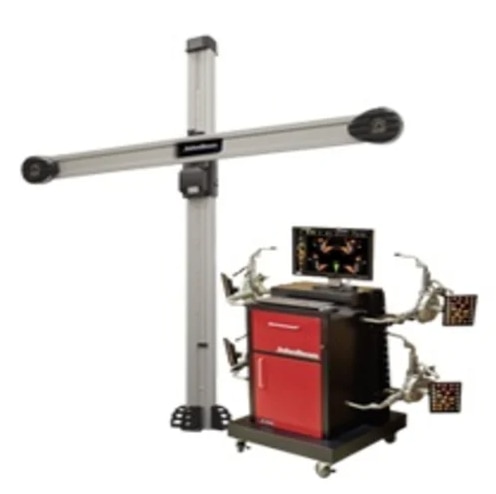

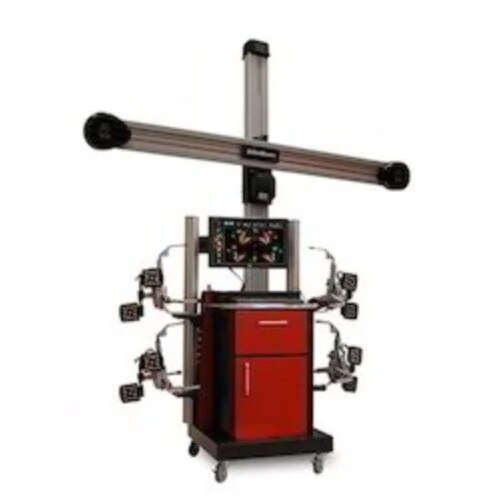

The John Bean Wheel I-Aligner Gold2 is a professional 3D wheel alignment system designed for passenger-car workshops, tyre service centers, dealerships, and automotive service facilities. It combines XD camera technology, XD targets, touchless AC 400 clamps, variable-height camera positioning, and Pro 42 Gold alignment software to support efficient wheel alignment measurement and adjustment.

The Gold2 is designed to provide alignment measurements at different working heights through its VHCS (Variable Height Camera System). Its 3D graphics and user-friendly software interface help technicians understand alignment information clearly during inspection and adjustment.

With support for wheel diameters from 19 to 39 inches, track widths from 48 to 96 inches, and wheelbases from 79 to 180 inches, the system is designed for a broad range of compatible passenger vehicles. 🛞🚗

Product Features:

John Bean Wheel I-Aligner Gold2

Professional 3D wheel alignment system

XD camera technology

Two XD cameras

Small, impact-resistant XD targets

3D animated graphics

VHCS Variable Height Camera System

AC 400 touchless wheel clamps

Pro 42 Gold alignment software

Deluxe cabinet

Advanced vehicle dimension measurement

Rolling-radius measurement

Automatic caster sweep

EZ-Toe functionality

Suitable for passenger cars

Designed for accurate and reliable alignment measurements

Supports measurements and adjustments at different camera heights

Product Specifications:

Brand: John Bean

Product Type: Wheel I-Aligner Gold2

Mount Type: 3D

Vehicle Type: Passenger Car

Max Wheelbase: 3000 mm

Power Supply: 230 V, 1 Phase, 50 Hz

Number of Cameras: 2

Camera Type: XD Camera

Camera Beam: Aluminium

Target: Small XD Target

Clamp Type: AC 400 Touchless

Clamp Weight: 3.2 kg

Cabinet: Deluxe Cabinet

Alignment Software: Pro 42 Gold

Track Width: 48–96 Inches

Wheel Base: 79–180 Inches

Wheel Diameter: 19–39 Inches

VHCS Variable Height Camera System:

The VHCS feature allows the camera beam height to be manually adjusted according to the vehicle and measurement requirement. This provides technicians with greater flexibility when performing alignment measurements and adjustment procedures at different working heights.

The variable-height configuration is particularly useful in professional workshops where vehicles with different dimensions need to be serviced. 🔧

Pro 42 Gold Software:

The Pro 42 Gold software is designed with a user-friendly interface that allows technicians to access relevant alignment functions from a streamlined working screen. The 3D graphical presentation helps make alignment information easier to understand during the service procedure.

XD Camera and XD Targets:

The XD camera system is designed to provide reliable alignment measurements, while the compact XD targets are designed to be lightweight and impact resistant. The combination is intended to support efficient daily operation in professional workshop environments.

AC 400 Touchless Wheel Clamps:

The AC 400 touchless wheel clamps are designed to work with XD targets without requiring traditional contact with the wheel rim in the same manner as conventional clamping arrangements. This can make wheel setup convenient while supporting alignment measurement procedures.

Key Alignment Functions:

Rolling Radius:

The rolling-radius measurement function can help identify mismatched tyre sizes. Differences in tyre rolling radius may contribute to vehicle pulling, handling concerns, or drivetrain-related issues, making this measurement useful during vehicle diagnostics.

Automatic Caster Sweep:

The system can automatically detect steering-wheel movement and initiate the caster sweep procedure, helping streamline the caster measurement process.

EZ-Toe:

EZ-Toe allows technicians to turn the front wheels while maintaining centered toe readings on the display. This can provide improved access to difficult adjustment points during alignment work.

Vehicle Dimension Measurement:

Advanced vehicle dimension measurement can help technicians evaluate vehicle geometry and identify potential dimensional discrepancies that may require further inspection.

Applications:

The John Bean Wheel I-Aligner Gold2 is suitable for:

Car wheel alignment

3D wheel alignment

Passenger-car service

Tyre service centers

Automotive workshops

Car dealerships

Wheel alignment centers

Steering and suspension service

Vehicle diagnostics

Professional automotive service facilities

Benefits:

3D graphical alignment display

Flexible camera-height adjustment

Touchless wheel-clamping solution

Dual XD camera configuration

Compact XD targets

User-friendly alignment software

Advanced vehicle measurements

Rolling-radius checking

Automatic caster sweep

EZ-Toe adjustment support

Wide track-width coverage

Wide wheelbase range

Suitable for professional workshop operations 🚗⚙️

Measurement Range:

The Gold2 supports a track width from 48 to 96 inches and a wheelbase from 79 to 180 inches. The specified wheel diameter range is 19 to 39 inches, while the maximum stated wheelbase is 3000 mm.

Actual vehicle compatibility should be verified against the equipment specifications and alignment database before operation.

Ideal For:

Professional wheel alignment centers

Car workshops

Tyre shops

Automotive dealerships

Multi-brand service centers

Suspension and steering workshops

Vehicle diagnostic centers

Professional car service facilities
