John Bean Wheel Aligner Gold 1

John Bean Wheel Aligner Gold 1

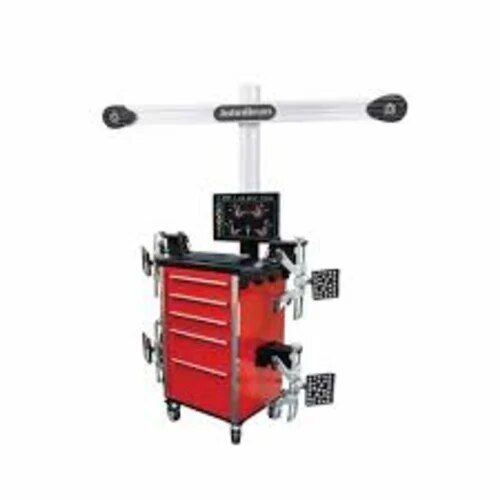

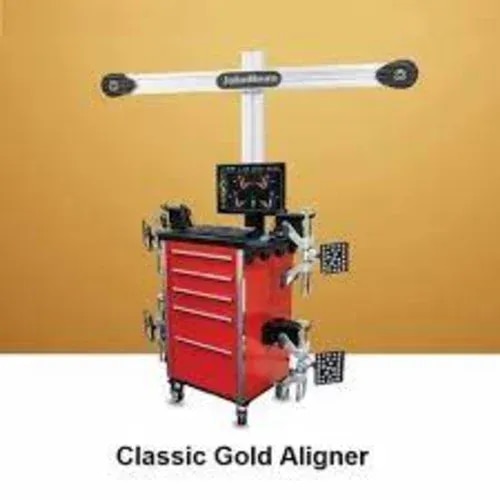

The John Bean Wheel Aligner Gold 1 is a professional wheel alignment system designed for automotive workshops, tyre service centers, dealerships, and vehicle inspection facilities. It combines high-resolution camera technology with XD targets and AC100 clamps to provide live alignment measurements and diagnostic information for compatible passenger vehicles.

The system supports wheel sizes from 11 to 22 inches, track widths from 48 to 96 inches, and wheelbases from 79 to 180 inches. Its dual-camera configuration and passive XD targets are designed for durability and reliable workshop use.

The Gold 1 also supports vehicle-dimension measurements, cross-diagonal checks, wheels-off alignment operations, and rolling-radius comparison, making it useful for alignment diagnostics as well as routine wheel service. 🚗🛞

Product Features:

Professional wheel alignment system

John Bean Gold 1

Automatic operation

Two-camera alignment system

High-resolution live alignment readings

XD target technology

Passive front and rear targets

AC100 wheel clamps

Lightweight and durable target design

Supports 11–22 inch wheel sizes

Track width range of 48–96 inches

Wheelbase range of 79–180 inches

Vehicle dimension measurement

Cross-diagonal measurement capability

Wheels-off alignment mode

Rolling-radius measurement

EZ-Access functionality

OEM Wizards

Suitable for professional automotive workshops

Product Specifications:

Brand: Manatec

Product Name: John Bean Wheel Aligner Gold 1

Product Type: Wheel Alignment Machine

Automation Grade: Automatic

Voltage: 110V

Power Supply: Single Phase

Frequency: 50 Hz

Portable: No

Wheel Size: 22 Inch

Supported Wheel Size: 11–22 Inch

Track Width: 48–96 Inch

Wheel Base: 79–180 Inch

Shipping Weight: 429.9 lbs / 195 kg

Target & Camera Type: XD

Number of Cameras: 2

Beam: Aluminium, Fixed

How Does the John Bean Gold 1 Wheel Aligner Work?

The system uses two cameras to capture alignment information from the wheel-mounted targets. The measurement data is presented as live alignment readings, allowing technicians to evaluate wheel alignment conditions and carry out required adjustments.

Passive XD targets are designed without electronic components on the targets themselves, which can help reduce concerns related to electronic damage during regular workshop handling. The AC100 clamps provide a suitable mounting arrangement for alignment targets. 🔧📊

Key Diagnostic Capabilities:

The John Bean Gold 1 is designed to provide more than basic alignment measurements. Its vehicle-dimension measurement capabilities allow technicians to evaluate track width and wheelbase, while cross-diagonal measurements can help identify potential structural or frame-related discrepancies.

The wheels-off mode can provide access to suspension and steering components that may be difficult to reach while the wheels remain installed.

Rolling-radius measurement can help identify differences in tyre dimensions that may contribute to vehicle pulling or handling complaints.

Applications:

Car wheel alignment

Four-wheel alignment

Automotive diagnostics

Tyre service centers

Car workshops

Vehicle dealerships

Suspension service

Steering system servicing

Frame and structural inspection support

Professional vehicle maintenance

Benefits:

Live alignment measurement

Dual-camera configuration

Durable passive targets

Broad wheel-size compatibility

Wide track-width range

Large wheelbase coverage

Vehicle dimension measurement

Cross-diagonal checking

Wheels-off service capability

Rolling-radius comparison

Suitable for professional workshop environments

Measurement Range:

The system supports wheel sizes from 11 to 22 inches, with a track width range of 48 to 96 inches and a wheelbase range of 79 to 180 inches. These specifications make it suitable for a broad selection of passenger vehicles within the system's specified operating parameters.

Ideal For:

Professional wheel alignment centers

Automotive workshops

Tyre shops

Car dealerships

Multi-brand service centers

Suspension and steering workshops

Vehicle inspection facilities

Automotive diagnostic centers

Important Note:

The supplied specifications identify the brand field as Manatec while the product name is provided as John Bean Wheel Aligner Gold 1. Product branding, configuration, accessories, software features, and specifications should be confirmed with the supplier before purchase.
