Pyramid Wheel Aligner

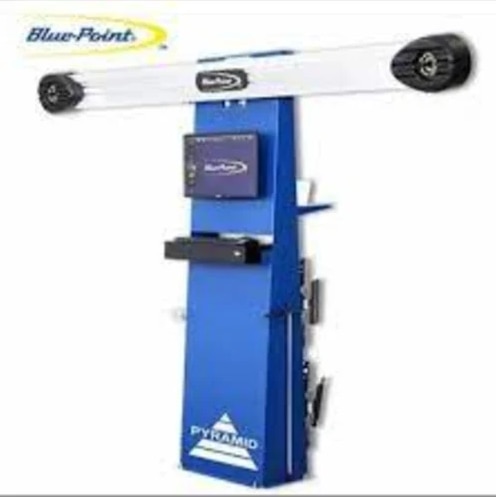

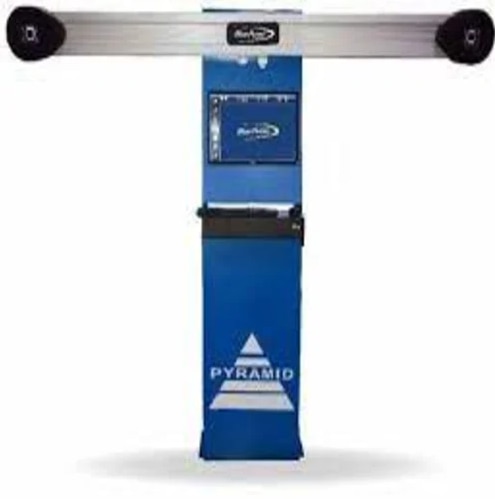

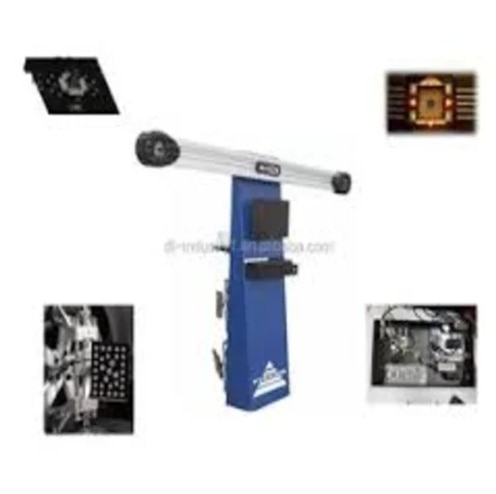

John Bean Pyramid Wheel Aligner

The John Bean Pyramid Wheel Aligner is a professional 3D imaging wheel alignment system designed for passenger cars, SUVs, and LCVs. It combines advanced camera-tracking technology, 3D vehicle modeling, passive targets, and professional alignment software to help workshops perform efficient wheel alignment measurements and adjustments.

The system is designed to automatically track targets and adapt camera positioning according to vehicle height, allowing technicians to obtain alignment readings at different lift heights. Its compact short-bay configuration can also be useful for workshops where installation space is limited.

With support for wheel sizes up to 22 inches, track widths up to 96 inches, and wheelbases up to 180 inches, the Pyramid Wheel Aligner is suitable for professional tyre shops, wheel alignment centers, dealerships, service stations, and automotive workshops. 🚗🛞

Product Features:

3D imaging wheel alignment technology

John Bean Pyramid Wheel Aligner

Automatic operation

Ultra camera and target measuring system

True 3D vehicle modeling technology

DigiSmart camera tracking technology

Automatic camera movement for target detection

Automatic camera adjustment according to vehicle height

Lightweight passive targets

Vehicle Orientation Directional Indicator

Pro 42 Platinum Software

30+ years of regional vehicle specifications

3D animated alignment graphics

Imaging 2-wheel alignment with 2 or 4 targets

Alignment readings designed to be available in under 2 minutes

Wireless mobility for convenient equipment relocation

Short-bay imaging configuration

Comprehensive vehicle diagnostic functions

Product Specifications:

Brand: John Bean

Product Type: Pyramid Wheel Aligner

Technology: 3D Imaging

Mount Type: 3D

Automation Grade: Automatic

Vehicle Type: SUV, LCV, Passenger Car

Mounting Type: Cabinet Mount

Maximum Wheelbase: 3800 mm

Wheel Base: Up to 180 Inches

Track Width: Up to 96 Inches

Rim Size: Up to 22 Inches

Alignment Type: Wheel Alignment

Clamp Type: Rim Clamp

Power Supply: 230 V AC

Voltage: 110V

Phase: Single Phase

Frequency: 50/60 Hz

Software: Pro 42 Platinum

Operating System: Windows 7

Delivery Time: 15 Days

3D Imaging Technology:

The Pyramid Wheel Aligner uses 3D imaging technology to measure wheel alignment conditions using cameras and targets. The true 3D modeling system helps technicians understand vehicle geometry through graphical information and live measurement displays.

The vehicle orientation indicator provides visual and directional guidance during the alignment procedure, helping operators follow the required workflow more efficiently. 📊🔧

DigiSmart Camera Tracking:

DigiSmart technology allows the cameras to automatically track the alignment targets. This camera-tracking capability is designed to keep the system ready for measurements at different lift heights without requiring repeated manual camera positioning.

The patented digital camera tracking system automatically adjusts to the vehicle's height, supporting greater flexibility during workshop operations.

Pro 42 Platinum Software:

The Pro 42 Platinum Software provides a graphical interface designed to simplify access to alignment functions and measurement information. Its 3D animations can help technicians understand alignment readings and adjustment procedures more easily.

The software also supports vehicle specifications, customer data management, alignment diagnostics, calibration history, printing functions, and various workshop-oriented features.

Key Diagnostic Functions:

Cross Diagonal Measurement:

Cross-diagonal measurements can help technicians identify potential frame or structural discrepancies before making alignment adjustments.

Rolling Radius:

The rolling-radius function can help identify mismatched tyre sizes. Differences in rolling radius can contribute to vehicle pulling and may create drivetrain-related concerns in certain vehicles.

Automatic Caster Sweep:

The system can detect steering-wheel movement and initiate the caster sweep procedure automatically, helping streamline caster measurement.

Live Alignment Measurements:

The system provides live information for alignment parameters such as caster, camber, and toe, helping technicians monitor measurements during the adjustment process.

Short-Bay Design:

The Pyramid Wheel Aligner is designed for short-bay applications, with approximately 68.5 inches between the turntable centerline and wall according to the supplied specifications. This can help workshops make better use of available service-bay space.

Operator Efficiency Features:

Integrated help system

3D animations

Customer database

Advanced customer database

Customer data entry

Multiple print formats

Multiple-language support

Calibration history

Aligner system diagnostics

Calibration data backup and restore

Customer database backup and restore

Tools, parts, and adjustment instructions

Custom vehicle specifications

Regional vehicle specifications

30+ years of vehicle specifications

Measurements & Adjustments:

Live caster measurement

Live camber measurement

Live toe measurement

Caster and SAI measurement on turntables

Toe-out-on-turns

Maximum turn measurement

A-arm adjustment support

Rear shim information

NorthStar shim program

Roll-forward and split-positioning sequence

Ford front bushing information

Imaging 2-wheel alignment

Applications:

The John Bean Pyramid Wheel Aligner is suitable for:

Passenger car wheel alignment

SUV wheel alignment

LCV wheel alignment

3D wheel alignment

Computerized wheel alignment

Tyre service centers

Car workshops

Automobile dealerships

Wheel alignment centers

Suspension service centers

Automotive diagnostic facilities

Professional vehicle service stations

Benefits for Automotive Workshops:

The Pyramid Wheel Aligner is designed to combine automatic camera tracking, 3D imaging, vehicle diagnostics, and workshop management features in one professional alignment platform.

Its wide vehicle application range and automatic camera adjustment can help workshops handle different vehicle heights and alignment requirements efficiently. The passive targets also reduce the need for electronic components on the wheel-mounted targets. 🛠️🚗

Ideal For:

Professional wheel alignment centers

Automotive workshops

Tyre shops

Car dealerships

Multi-brand service centers

Suspension and steering workshops

Vehicle diagnostic centers

Automotive service stations

Commercial vehicle service facilities

About the John Bean Pyramid Wheel Aligner:

The John Bean Pyramid is designed as a professional imaging wheel alignment solution for workshops seeking 3D alignment measurement, automated camera tracking, vehicle diagnostics, and an extensive vehicle specification database. Its combination of 3D imaging technology, DigiSmart tracking, Pro 42 Platinum software, and passive targets makes it suitable for modern wheel-service operations.

Installation and delivery requirements should be confirmed with the supplier before purchase. The listed delivery time is 15 days.
